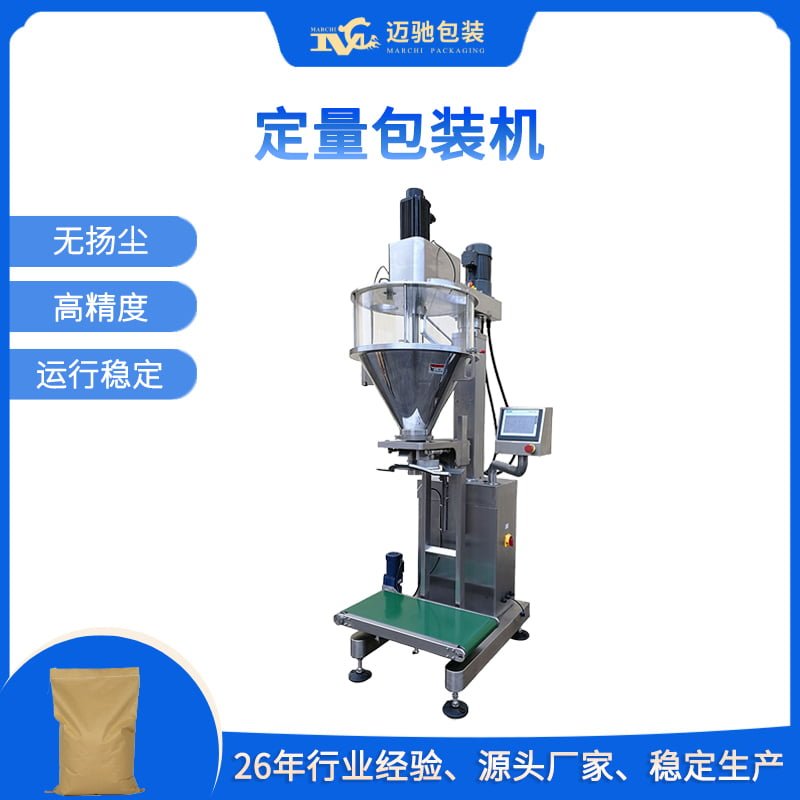

设备简介：

该机采用底充式灌装，灌装过程中从底部进行充填，落差小，无扬尘，适用于包装精度要求高的，或密度不均匀的，流动性好的或者流动性差的粉末、小颗粒物料。

1.全不锈钢结构，组合式或开启式透明料箱，无需工具即可方便拆洗

2.气动夹袋装置和托架装在重量传感器上，根据预先设定的重量进行快速和慢速充填

3.高反应速度的称重系统，保证高精度得以实现

4.PLC控制、触摸屏人机界面显示，操作简便

5.各种产品调整参数配方可储存，备后使用，储存10个配方

设备参数：

设备型号：MC-DLLB-100L

包装重量(千克)：5～25

包装精度：±0.1～0.5%

包装速度(包/分钟)：1～4

电源：3P AC 208～415V 50/60Hz

整机功率(千瓦)：2.87

整机重量(千克)：450

Equipment Introduction:

This machine adopts bottom-filling technology, which fills materials from the bottom during the packaging process, resulting in minimal drop height and no dust dispersion. It is suitable for packaging powders and small granules with high precision requirements, uneven density, good or poor fluidity.

1.Fully stainless steel structure, modular or open transparent hopper, easy to disassemble and clean without tools.

2.Pneumatic bag-clamping device and support frame mounted on a load cell for rapid and slow filling based on preset weights.

3.High-response weighing system ensures high precision.

4.PLC control with touchscreen HMI for simple operation.

5.Adjustable parameter recipes for different products can be stored for future use, with capacity for 10 recipes.

Equipment Parameters:

Model: MC-DLLB-100L

Packaging Weight (kg): 5–25

Packaging Accuracy: ±0.1–0.5%

Packaging Speed (bags/min): 1–4

Power Supply: 3P AC 208–415V 50/60Hz

Total Power (kW): 2.87

Machine Weight (kg): 450
